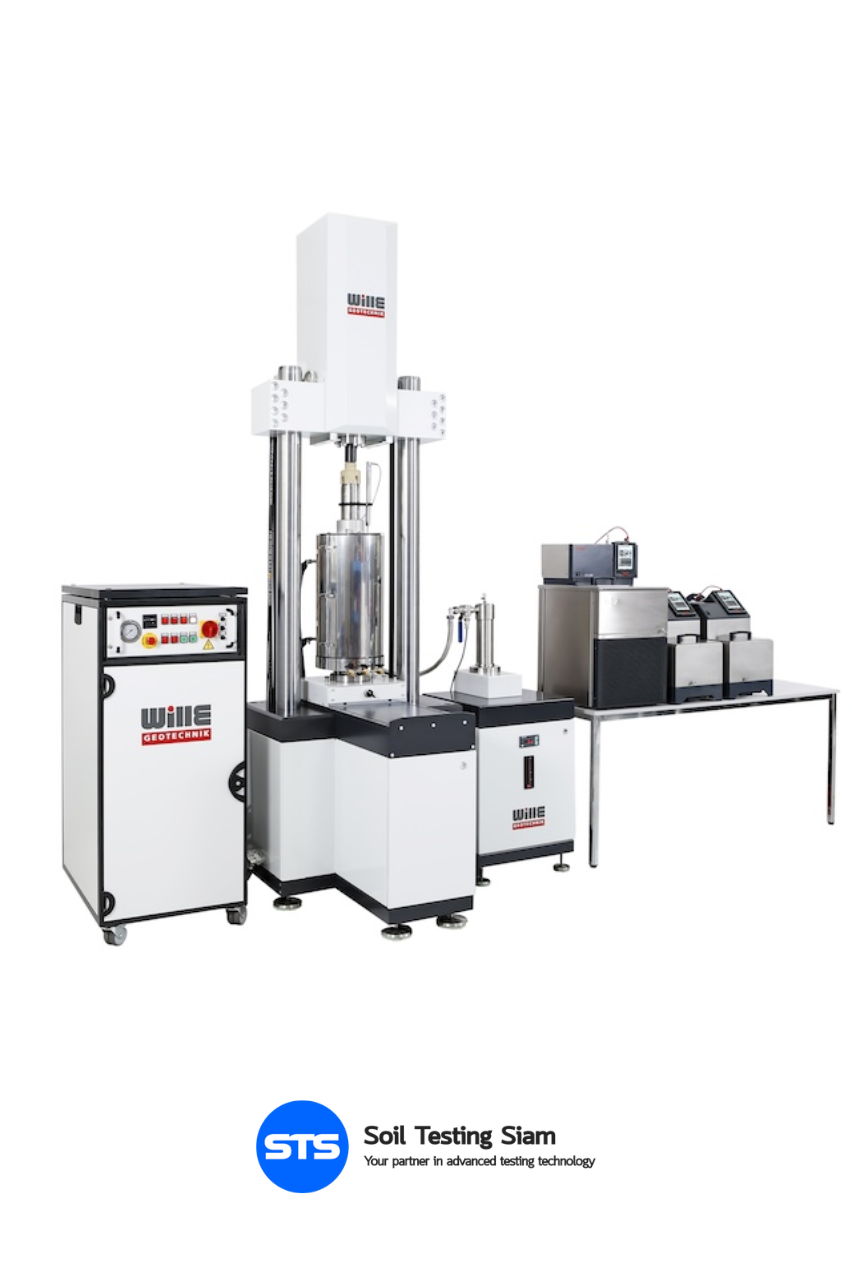

Wille – THM Static Triaxial Testing Device
The temperature-controlled Soil triaxial testing systems are designed and manufactured to perform stress path triaxial testing on soil under different temperature conditions. Many tests require temperature controlling of specimens either for high temperatures or for low temperatures. This requires new designed system which would be able to avoid any temperature gradient in samples during tests and make a unique constant temperature condition during tests.
Description
-
Information
-
Standard
-
Main Features
-
Accessories
| Brand | Wille |
| Model | |
| Capacity | - Load Range Up to 150kN
- Sample Size Up to 150mm - Confining Pressure Up to 20MPa - Temperature range -20 °C up to +200 °C degree |
- Static loads in different ranges
- Electromechanical or servohydraulic loading system to cover all required loads and frequencies
- Different sample sizes up to 150mm
- Different cell pressures up to 32MPa
- Frozen Soil test down to -20 °C degree
- High-Temperature test up to +200 °C
- Special-Heat transfer method
- No need to have internal heating/cooling coil
- Software including different test modules e.g. Standard Static triaxial tests (CD, CU, and UU), Stress path tests, dynamic tests etc.
- Ethernet connection for fast data transferring to PC
UPGRADE OPTIONS
- Lifting device for Triaxial cell
- Bender Element package
- Unsaturated Test
- Local strain transducers
- Submersible load cell
- High-Pressure cell
- Resilient Modulus test
- K0 tests
- Water degassing apparatus
- Bi-axial test package (Plane strain test)
