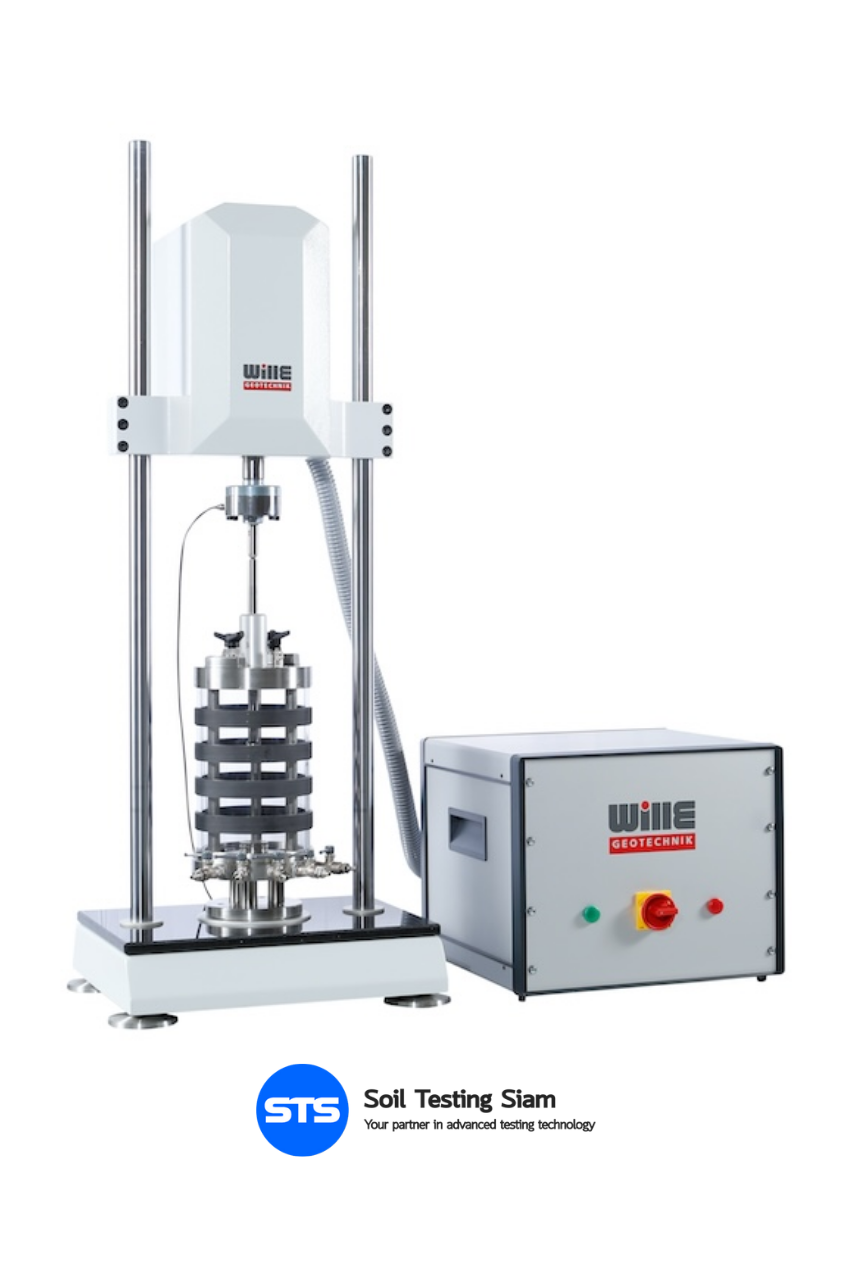

Wille – Table Top Cyclic Triaxial Testing System
The new developed cyclic tabletop electromechanical closed-loop controlled triaxial load frames are characterized by their high accuracy for stress-strain triaxial tests with static and cyclic automatic loading possibilities up to 10kN and 10Hz.
Description
-
Information
-
Standard
-
Main Features
-
Accessories
| Brand | Wille |
| Model | |
| Capacity | - Static axial load 5kN /10 kN
- Cyclic axial load 5kN / 10 kN - Cyclic frequency 5 Hz / 10Hz - Confining pressure Up to 3 MPa - Sample size Up to 150 mm |
- ASTM D-2850
- ASTM D-2850-03A
- ASTM-D3999-91
- ASTM D-5084
- ASTM D-5311
- ASTM D-7181
- ASTM D-7181-11
- BS 1377-6
- BS 1377-8
- AASHTO T-292
- AASHTO T-294
- AASHTO T-307
- AASHTO T-307-99
- AASHTO TP-46
- CEN ISO/TS 17892-11
- CEN ISO/TS 17892-8
- CEN ISO/TS 17892-9
- AS 1289.6.4.1
- AS 1289.6.4.2
- AS 1289.6.6.1
- JGS 0521
- JGS 0522
- JGS 0523
- JGS 0524
- JGS 0525
- JGS 0526
- JGS 0541
- JGS 0542
- Standard triaxial tests (CD, CU, UU) B-value check control
- Stress path triaxial tests (p, q and s, t) Resilient modulus
- Uniaxial compression test
- Consolidation test
- Isotropic and anisotropic consolidation
- High-precision strain, stress and position closed- loop controlled load frame -User defined test procedures with advance GEOsys Software
UPGRADE OPTIONS
- Automatic lifting device for Triaxial cell
- Sliding system for easy removal of triaxial cell
- Temperature control package
- Bender Element package
- Unsaturated Test
- Local strain transducers
- Submersible load cell
- High Pressure cell
- Resilient Modulus test
- K0 tests
- Water degassing apparatus
