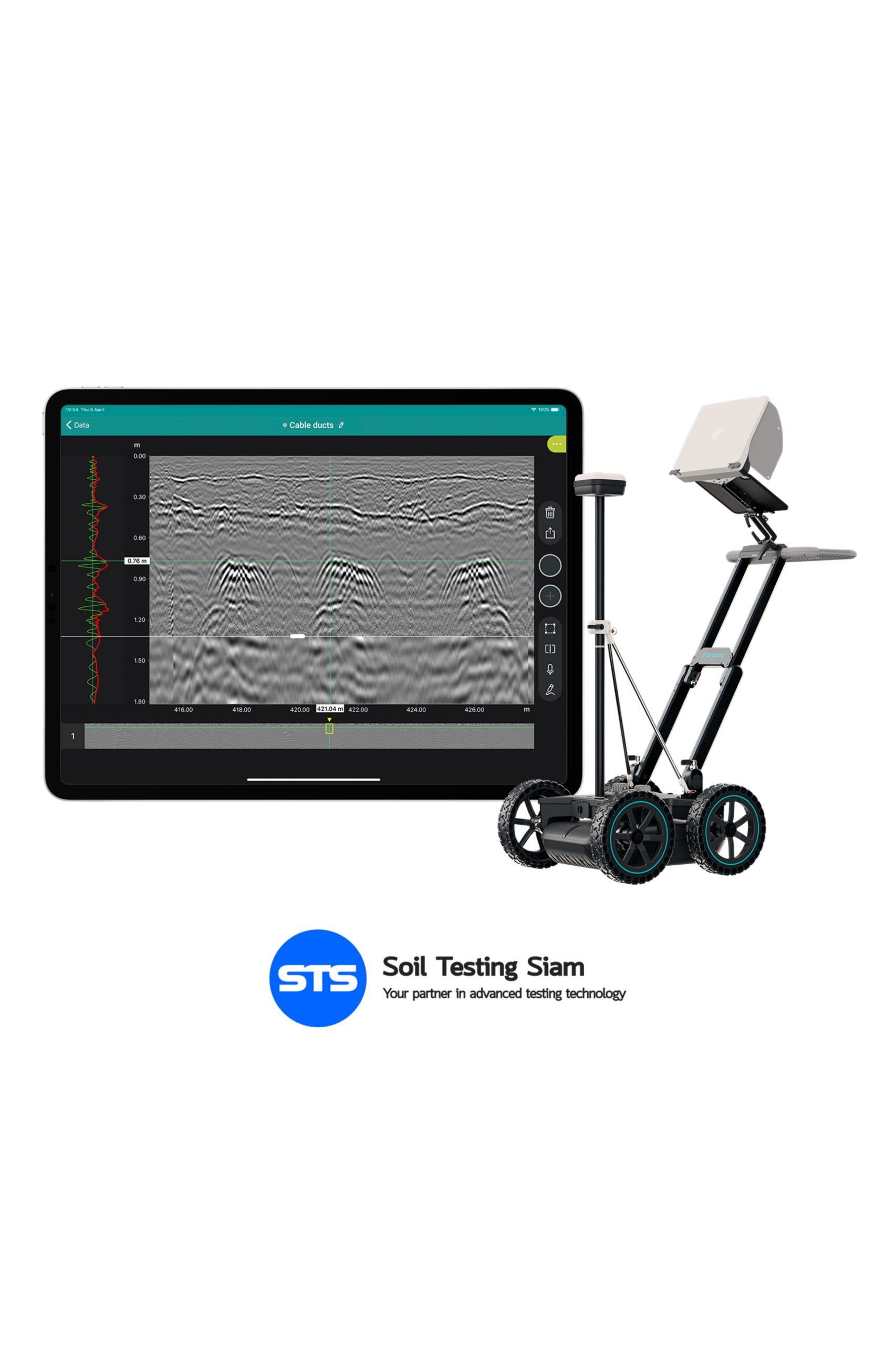

Proceq – Subsurface Mapping GPR – GS8000

- AS 5488-2013
- NF_S70-003
- UNI/PdR 26.01:2017
- ASCE 38-02
- CSA S250
- HSG47
- PAS128
- ASTM D6432-11

- Radar technology Stepped-frequency Continuous-Wave GPR
- Modulated frequency range 40 – 3440 MHz
- Effective bandwidth 3200 MHz
- Min. detectable target size 1 cm | 0.4 in
- Max. time window 200 ns
- Scan rate 500 Hz
- Spatial interval Up to 100 scans/m
- Acquisition speed Up to 80 Km/h | 50 mph
- GNSS receiver Multiband GPS + Glonass + Galileo + Beidou, SSR augmentation / NRTK-compatible ⁴, Dimensions: 145 x 145 x 70 mm, Weight: 0.7 Kg, 4x AA-batteries included
- GNSS real-time 3D accuracy Typ. 1 - 5 cm | 0.5 - 2 in
- GNSS initialization time Typ. 5 - 30 s
- Wheel encoders 2
- Weight 24 Kg
- Dimensions 61 x 57 x 38 cm
- Antenna positions Ground-coupled with dual-axis floating, Air-coupled with 25 mm clearance
- Ingress protection (IP) / sealing IP65
- Power supply Removable flight-safe battery pack | Off-the-shelf power bank
- Autonomy 3.5 hours | Full working day
- Operating humidity <95% RH, non-condensing
- Connectivity WiFi, Ethernet, USB-A, USB-B, USB-C, Lemo
- Measurements modes Line Scan, Grid Scan, Free Path
- Visualization modes A-scan, Line Scan, Line Scan migrated, Time Slice View, Map View, Augmented Reality
- On-site annotations Tags, Markers, Photos, Points of interest, Voice notes, Markups, Linework
- Reporting Workspace integration, Automatic logbook, Instant map / drawing generation, Instant report generation, Share via url
- Export format SEG-Y, DXF, SHP, KML, HTML
- Coordinate System EPSG global database, Local grid models, Geoid models

- 39350510 Battery pack
- 39350803 Wear plate
- 39350660 GNSS pole fixation kit
- 39350225 Wheel position adapter kit
- 39350710 Wheel, 30cm
- 39350404 Universal tablet holder
- 39350480 Sun & rain cover for tablet
- 39350060 Umbrella holder kit
- 39350486 RAM-mount adapter for tablet
- 39350676 DB9 to Lemo adapter
- 39350646 Lemo to lemo cable
- 39350080 Hard transportation case
