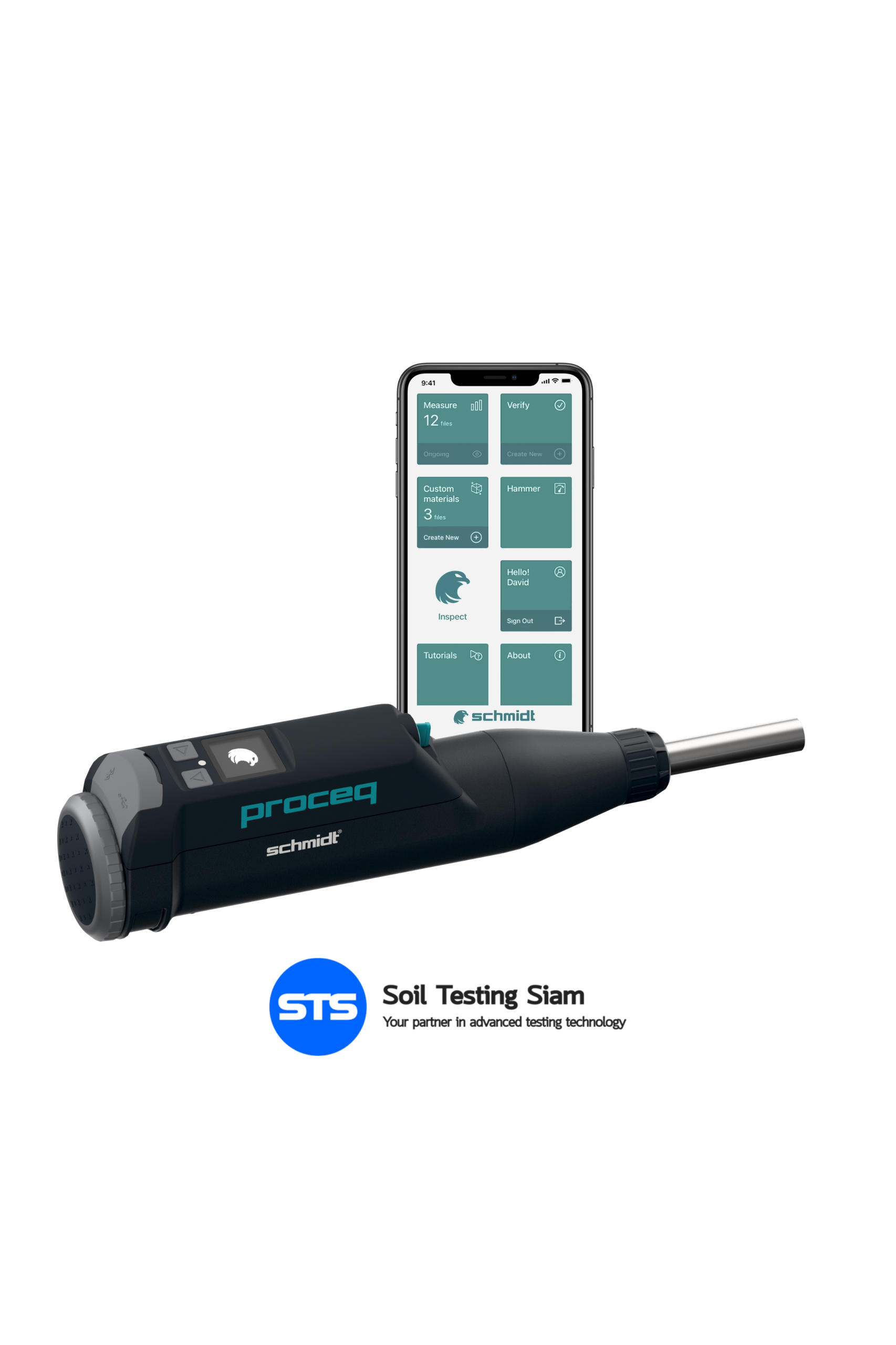

Proceq – Schmidt Rebound Hammers – Original Schmidt OS8000

- ASTM C 805
- EN 12504-4
- EN 13791
- ISO 1920-7
- JIS A1155
- ACI 228.1R
- JGJ-T23
- JCSE-G504

- Automatic calculation of rebound value according to international standards
- Analog & backlit digital display (100 x 100 pixels, graphic)
- Impact Energy 2.207 Nm (N), 0.735 Nm (L)
- Compressive Strength Range 10 to >100 N/mm2 (1'450 to>10'152 psi)
- Instrument memory > 20,000 impacts
- Display memory - Memory of iOS or Android device
- Low energy Bluetooth®, USB for charging and updates
- Measurements : Impact angle independent, Displays the series on-screen as you work, Series validity checked automatically, Review an entire series, Delete impacts
- Battery: Standard AAA, alkaline or rechargeable
- Battery Lifetime > 20,000 impacts between charges
- Operating Temperature 0° to 50°C
- Languages : English, German, Japanese, Chinese, Korean, Spanish, Portuguese, Italian, French, Russian

- 34001301 Portable anvil for the OS8000 N/L, For on-site calibration check as recommended by EN12504-2
- 31009040 Testing anvil for the Original Schmidt N/L, OS8000 N/L, For regular calibration check as recommended by EN12504-2
- 34001067 For use with the OS8000, OS8200, PS8000, RS8000, Including printer, charging cable, belt loop and 1 roll of registration paper
