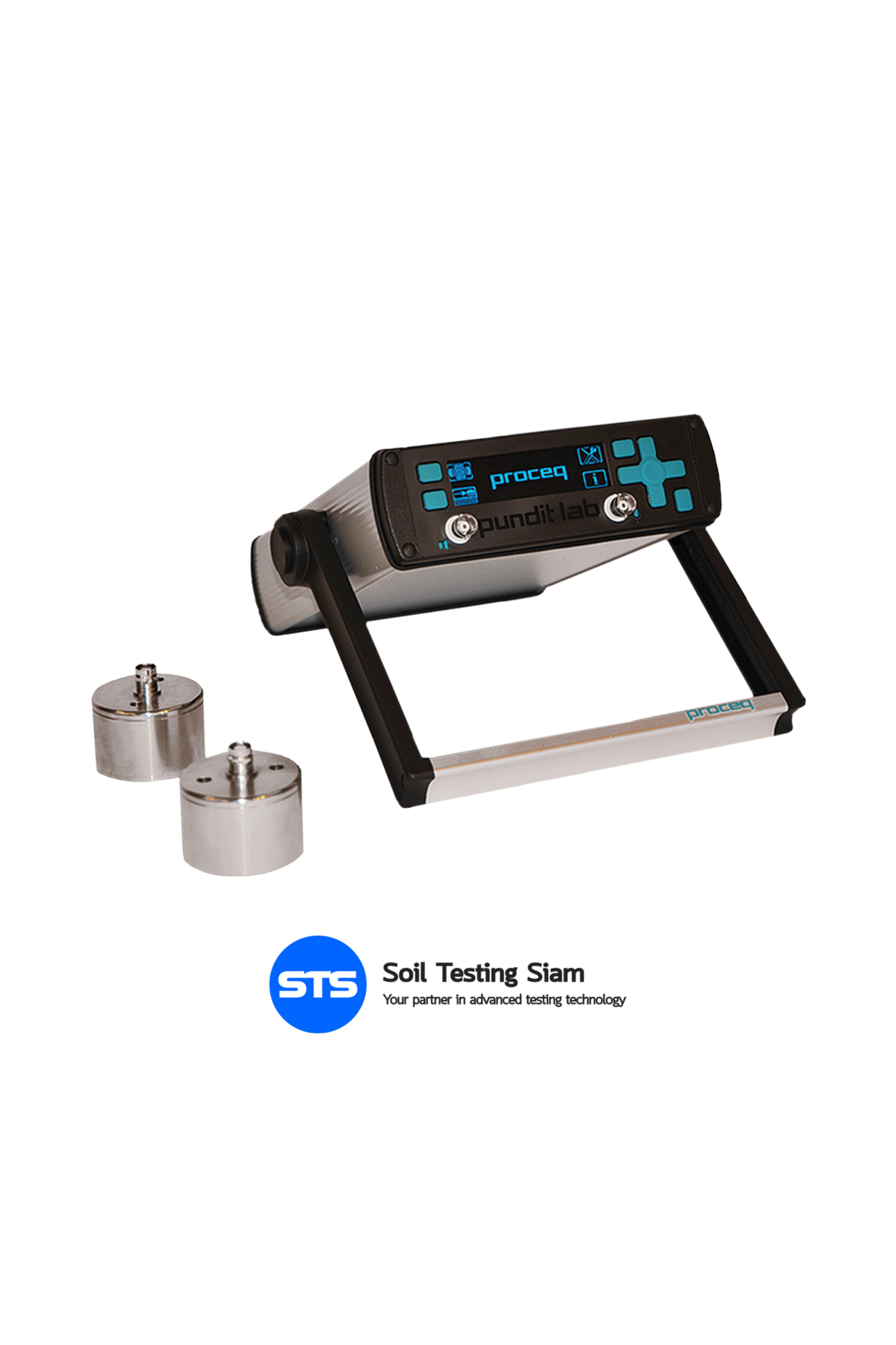

Proceq – Pundit Ultrasonic – Pundit Lab (+)

- ASTM C 597-02
- CECS 21
- EN 12504-4
- IS 13311
- ISO 1920-7:2004

- A flexible UPV test instrument designed for laboratory operations
- Bandwidth 20 to 500 kHz
- Technology Ultrasonic pulse velocity
- Measuring Resolution 0.1 us
- Pulse Voltage ±125 to ±500 V (UPV)
- Receiver Gain 1x, 10x, 100x, AUTO, Pundit Lab+ up to 1000x
- Nominal Transducer Frequency 24 – 500 kHz
- Pulse Shape Square Wave
- Number of Channels 1
- PC Software Pundit Link unlocks the full Pundit Lab+capabilities
- Display 79 x 21 mm passive matrix OLED
- Memory > 500 measured values
- Connections USB connection to PC
- Measurement Modes Pulse velocity/Surface velocity/Data logging/E-modulus/Compressive strength correlation/Crack depth
- Measuring Range Up to 15 m depending on concrete quality
- Transducers Avaiable Proceq transducers: 54 kHz, 150 kHz, 250 kHz, 54 kHz Exponential, 500 kHz and 250 kHz Shear Wave / Connect third party transducers up to 24 kHz, 54 kHz, 150 kHz, 250 kHz, 54 kHz Exponential, 500 kHz and 40 kHz shear wave dry point contact

- 2 Exponential transducer 54 kHz, including calibration rod (325 40 176)
- Transducer 150 kHz (Two required for operation) (325 40 141)
