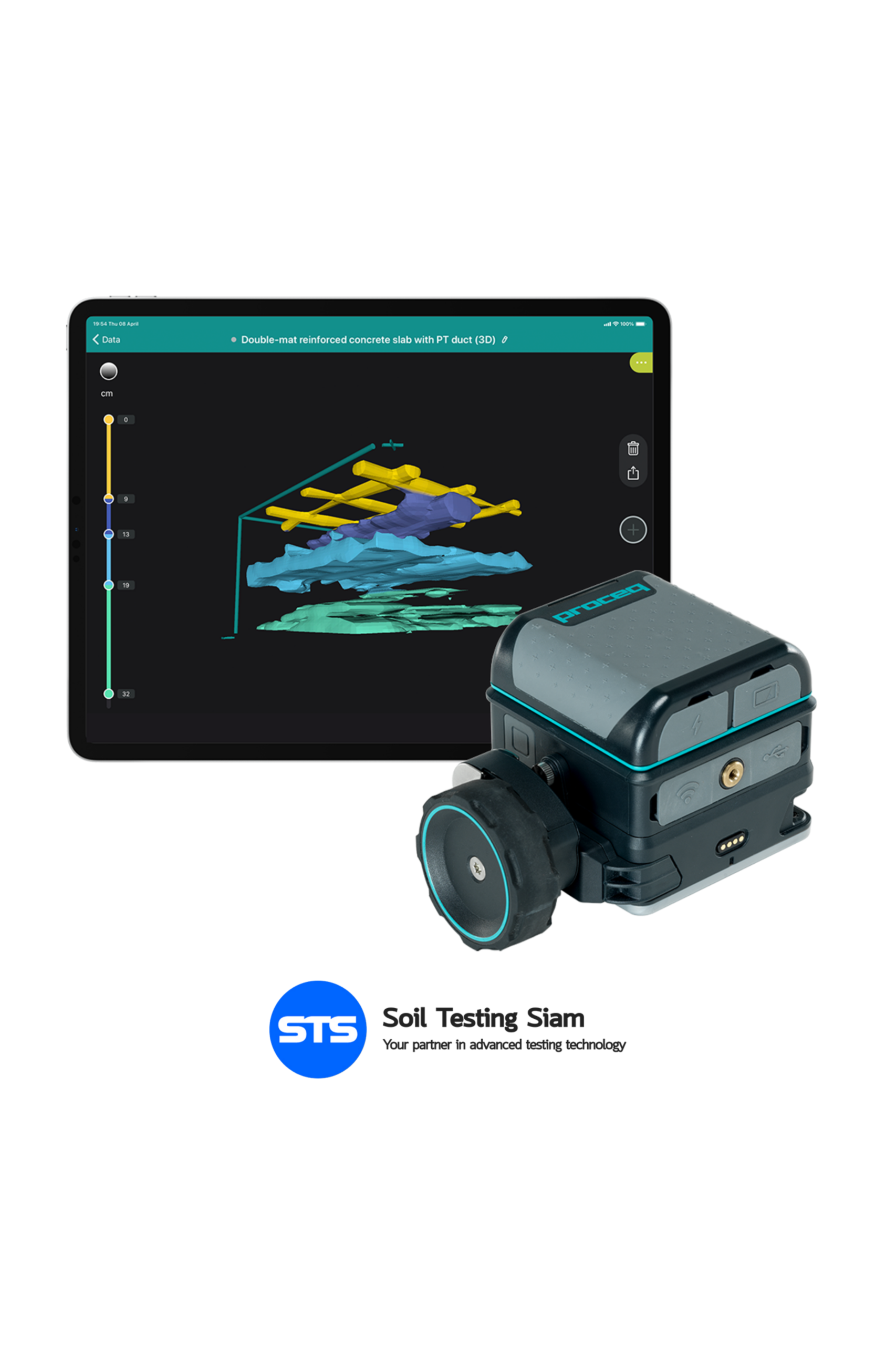

Proceq – Ground Penetrating Radars – GP8800

- ACI 228.2R.98
- ACI 228.2R.98
- ASTM D6087-08
- ASTM D6432-11
- EN 302066 - ETSI

- Radar technology Stepped-frequency continuous-wave (SFCW) GPR
- Modulated frequency range 400 – 6000 MHz
- Penetration depth 65 cm / 25.6 in
- Battery 1x Removeable Li-ion Battery Pack/2x Removeable Flight-safe, removable pack, 4x AA (NiMH)
- Dimensions 8.9 x 8.9 x 7.6 cm
- Weight 487 g / 17.2 oz (excl. battery pack)
- Ground clearance 0 cm
- Antennas 1
- Antenna distance to edge 4.5 cm / 1.77 in
- Special features Wireless wheel, reconfigurable at any time without tools, Cross-polarization (trailing and side-car configurations), USB-C tethering to battery pack/power bank
- Connections WiFi and USBC to display unit
- Autonomy Li-ion Battery Pack: Up to 8h, Battery Pack (4xAA NiMH): Up to 2.5h, Power bank (not included): Up to 8h
- Measurement modes Line Scan, Superline Scan, Area Scan (with Flexible Grid up to 16m2 / 172 ft2, or up to 100m2 / 1076ft2)
- Review modes Line scan (B-scan), Superline scan, A-scan (incl. envelope), Migrated view, Non-migrated view, Split view, Time-Slice view, 3D view, AR
- Advanced visualization Time-Slice view Pro, 3D view, Augmented Reality (AR)
- Reporting Workspace integration, Automatic Logbook, SEG-Y export, Instant report generation, Share via URL
- Export formats JPG, PNG, CSV, SEGY, HTML

- 79330235 UTH100 Universal tablet holder for Proceq GPR and Pundit PD
- 79330345 UHA100 - Universal tablet holder with chest strap
- 91011110 Lanyard
- 39335130 Lithium-Ion battery
- 39330076 Telescopic Pole Adapter ASM Proceq GP8800
