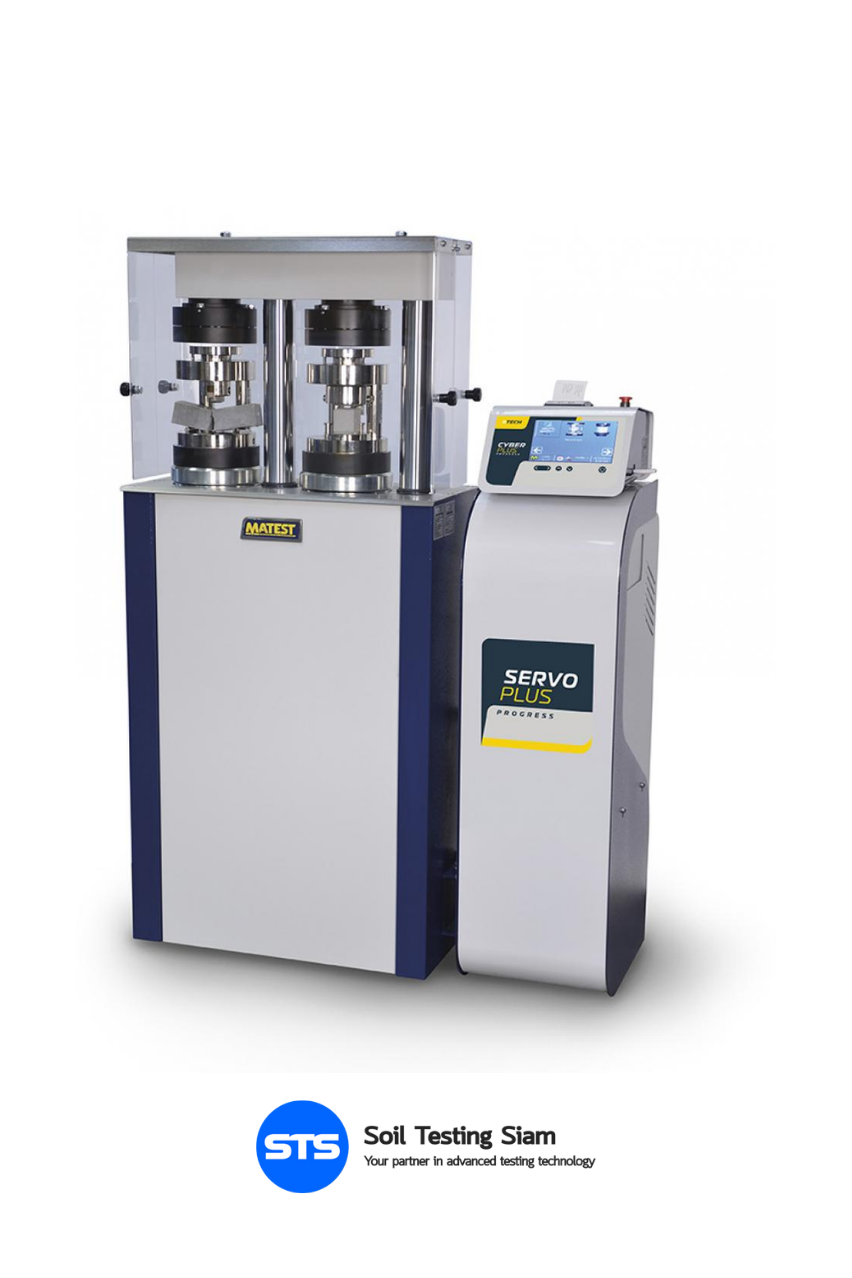

Dual-Chamber compression and flexural machine 300/15 kN
automatic, Servo-plus progress Compression and flexural testing machine High Performance with dual testing chamber and two independent measuring ranges 300 kN AND 15 kN with load cells, Servo-plus progress control unit. This testing machine is equipped with two load chambers with two independent measuring ranges. It is suitable to perform:
Description
-
Information
-
Standard
-
Main Features
-
Accessoires
| Brand | Matest |
| Model | E183N |
| Capacity | 300/15 kN |
| EN 196-1, ASTM C109, ASTM C348, ASTM C34,9 DIN 1164, BS 4550, GOST 26798.1, EN 13286-41, EN 933-5 ISO 679, ASTM C1194, EN 1015-11, EN 13892-2, EN ISO 13503-2, API RP 19 C |
| – Max. vertical daylight between platens: 189 mm – Horizontal daylight between columns: 210 mm – Platens diameter: 165 mm – Ram travel: 35 mm approx. – Accuracy: Class 1 starting from 10% of the scale for both the ranges. – Safety guards to CE Directive, polycarbonate made, with hinges. – Supplied complete with lower compression platens and coupling pieces to easily fix the compression devices (see accessories). – Dimensions of the frame: 1300x400xh1500 mm approx. – Power supply: 230V 1ph 50Hz 750W – Weight: 400 kg |
| – C109-14N Software for flexural strenghts – E161-05 Distance piece, 50 mm high – E161-06 Distance piece, 25 mm high – S337-51 Calibration process – C127-11 Thermo-paper roll for printer (pack of 10 rolls) – C097-05 Class 1 starting from 1% of the full range – C127N Graphic printer – H009-01 Personal computer – C099N Inverter device – C104-10N Firmware and software – S336-14 Displacement transducer – E183-10 Safety Guards – E171 Compression device for mortar cubes 50 mm – E171-01 Compression device to test mortar cubes 70.7 mm – E172-01 Flexure device for mortar prisms, EN standards – E170 Compression device for mortar prisms, EN standard – E190M Elastic modulus on cement, automatic – C104-31SP Holder for Displacement Transducer – SSW-LINK Firmware Upgrade for SmartLab Software – SSW-LINK Aggiornamento Firmware per SmartLab – E172-02 Flexure device for mortar prisms, ASTM standard |
