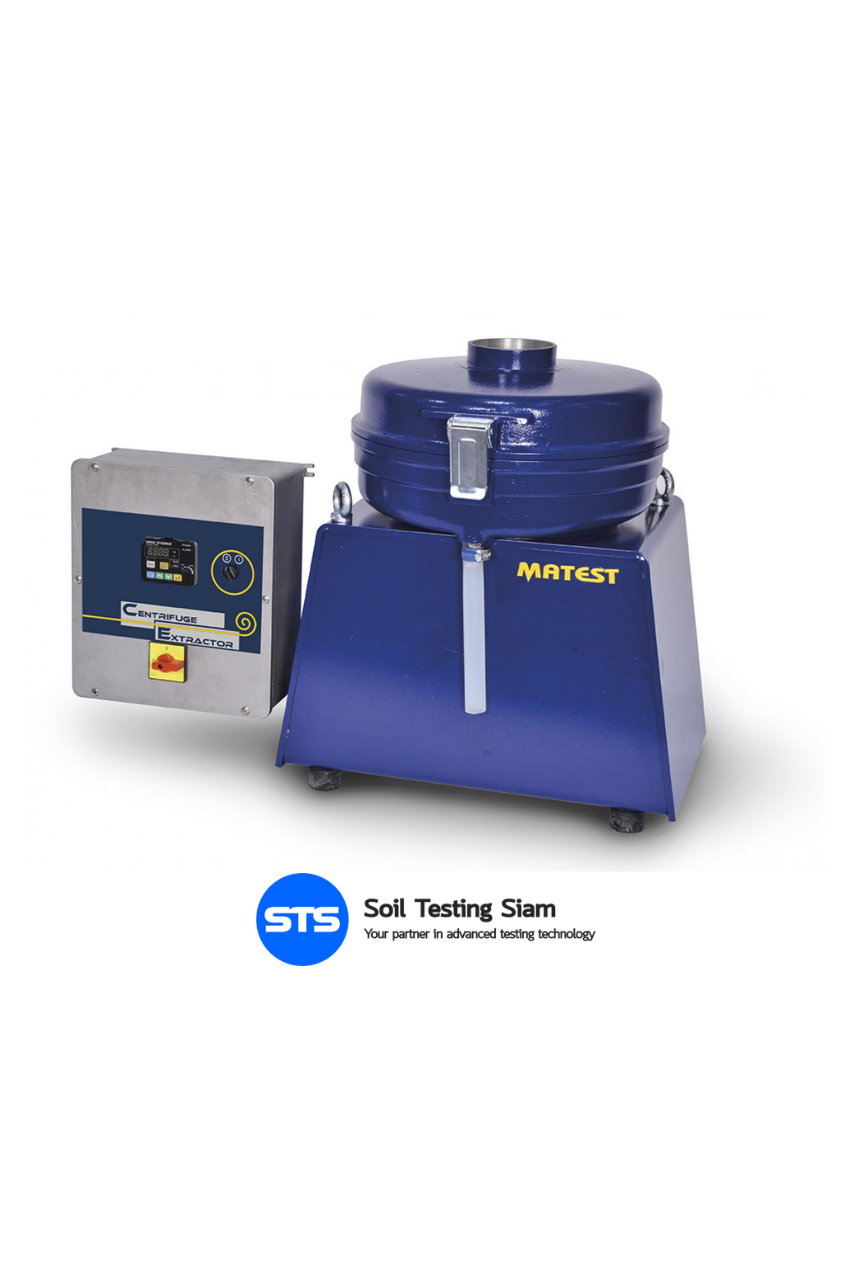

MATEST – B011 – Centrifuge extractor
Used for the determination of bitumen percentage in bituminous mixtures.
Supplied complete with speed regulator and digital display monitoring the frequency.
The centrifuge is supplied without aluminium bowl+cover and without filter discs to be ordered separately (see accessories).
The unit cannot be sold in CE markets (see mod. B011-10)
Description
- It consists of a removable, precision machined aluminium rotor bowl, placed into a cylindrical aluminium box. - B010-11 Bowl and cover 1500 g. capacity.
Information
Standard
Main Features
Accessories
Brand
MATEST
Model
B011
Capacity
1500/3000 g.
- EN 12697-1
- ASTM D2172
- AASHTO T164A
- The separate control panel incorporates an electronic card fitted with AC drive which automatically drives the bowl speed rotation ramp from 0 to 3600 rpm as requested by Standards, with fast stop bowl rotation at the end of the test.
- Supplied complete with speed regulator and digital display monitoring the frequency.
- Power supply: 230V 1ph 50-60Hz 600W.
- Dimensions: 480x330x530 mm.
- Weight: 50 kg approx.
- B010-12 Bowl and cover 3000 g. capacity.
- B010-15 Filter disc, 1500 g. capacity.
- B010-16 Filter disc, 3000 g. capacity.
- B010-10 Safety electromagnetic micro-switch system.
